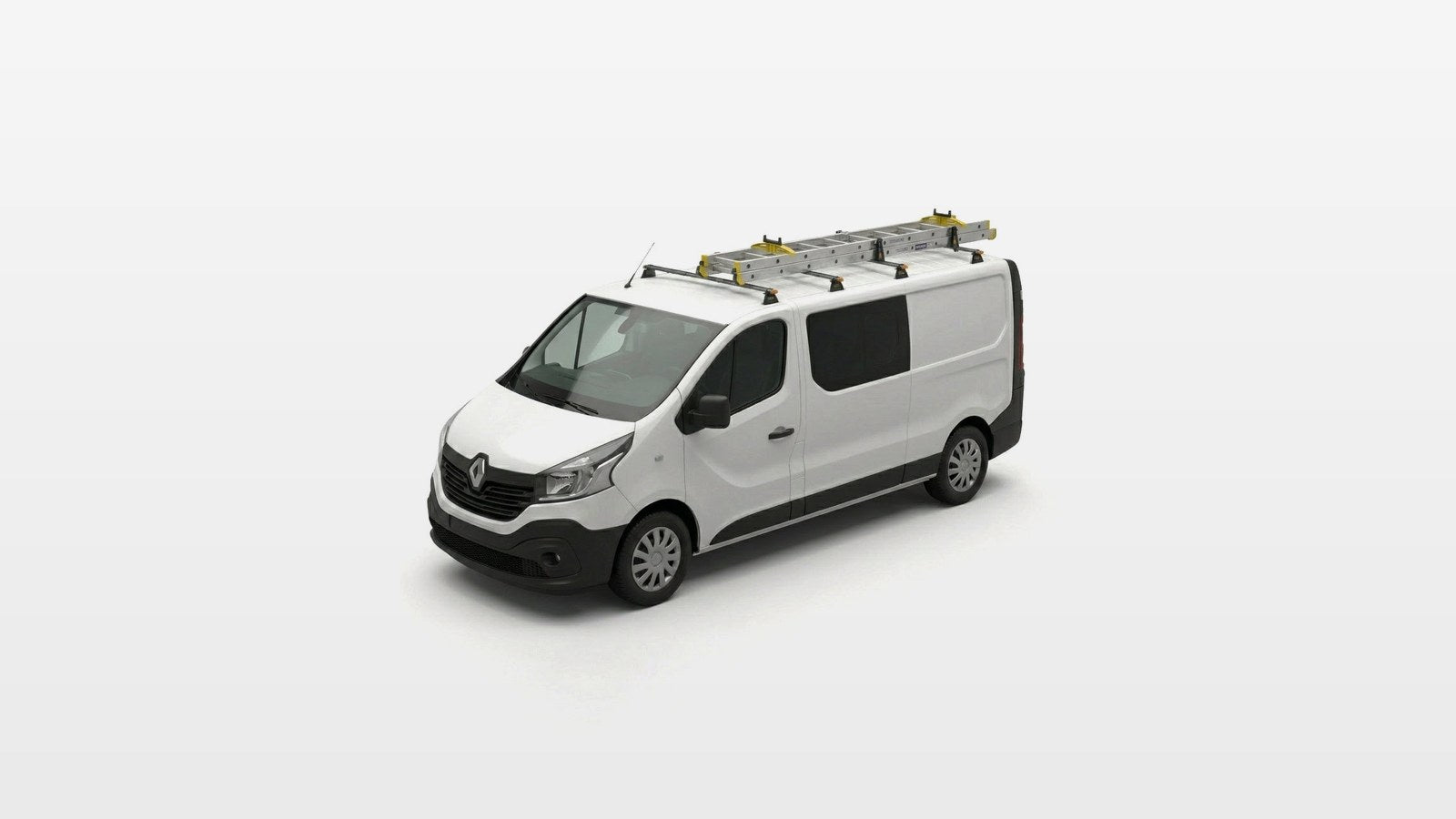

Short answer: A ladder loading roller attaches to the rear of a commercial vehicle and its roof bar system, allowing one person to lift a ladder onto the roof. The correct roller code depends on how the vehicle's rear doors open — one top-hinged door or two side-hinged doors. For this reason, provide the vehicle's make, model, and year before ordering so the correct code can be selected.
What does the roller do?
Lifting a long ladder onto the roof of a commercial vehicle alone is both difficult and risky: the ladder can scratch the paint, become unbalanced, and strain your back. The loading roller is positioned at the rear of the vehicle; the end of the ladder rests on the roller and is pushed up onto the roof. This is a real advantage for teams that load several times a day.
The roller alone is not enough — after lifting the ladder onto the roof, it must be secured with a locking ladder clamp. The roller handles loading; the clamp secures the ladder during transport.
Why does the code vary by vehicle?
The roller fits the vehicle's rear-door design. There are two main configurations, and the code depends on which one you have:
- Single top-hinged door (vehicles with a tailgate that opens upward) — the roller must be positioned so the tailgate does not hit it when opened.
- Two side-hinged doors (panel vans with two rear doors) — the doors have a different opening arc, so the roller position and mounting geometry vary accordingly.
The model year can change the code even within the same make. For example, Renault Trafic models from 2014 onward have a single top-hinged door, while Transit Courier 2014–2024 and Renault Kangoo models from 2022 onward have two side-hinged doors; VW T5 2002–2015 and VW Caddy 2015–2020 use one code, while Fiat Doblo 2 (2010–2021), Ford Transit models from 2014 onward, and VW Caddy models from 2021 onward use another. Shared-platform vehicles from 2016 onward, such as Berlingo, Partner, Combo, Expert, Proace, Vivaro, Rifter, Scudo, and Doblo 3, belong to their own group.
So instead of choosing the product by looking at the model, provide the make, model, and year and have the code confirmed first. The wrong code can prevent the tailgate from opening fully or keep the roller from fitting correctly.
Installation Sequence
- Have the vehicle's code confirmed. Find the correct roller code using the make, model, and year.
- Install the roof bar system. The roller and ladder clamp attach to the roof bars, not directly to the roof; if your vehicle does not have roof bars, you need to install them first.
- Position the roller at the rear of the vehicle. Leave the connection loose and fully open the rear door(s) to test — there must be no contact in any position.
- Tighten it and do a loading test. Load and unload an empty ladder once; it should not scrape or catch anywhere along its path.
- Fit the clamps. Use two locking clamps per set, one front and one rear; pass the hook between the ladder rungs, attach it to the roof bars, and lock it in place.
When loading,
- push the ladder to slide it , rather than lifting it — that is what the roller is for.
- Keep the rear door closed while loading; an open door blocks your view and creates a risk of impact.
- When the ladder is on the roof, always secure it with a clamp. Tying it with rope or cord is not sufficient for traffic safety.
- For long and heavy items, also the load stop and use a ratchet strap .
Frequently Asked Questions
How do you install a ladder loading roller on a commercial vehicle roof?
First, confirm the roller code for your vehicle, then install the roof bar system — the roller attaches to the roof bars, not directly to the roof. Position the roller loosely at the rear of the vehicle, fully open the rear door(s) to confirm there is no contact, then tighten it and test-load an empty ladder.
How is the roller code determined?
By how the vehicle's rear doors open: one top-hinged door or two side-hinged doors. Even the model year can change the code within the same make. For this reason, provide the vehicle's make, model, and year before ordering to have the code confirmed.
How do you install a ladder-carrying system on a light commercial vehicle?
It consists of three parts: roof bars (the supporting base), a loading roller (to let one person lift a ladder onto the roof), and locking ladder clamps (to secure it during transport). Each clamp set has two pieces, one front and one rear; pass the hook between the ladder rungs, attach it to the roof bars, and lock it in place.
Is the roller enough on its own?
No. The roller only solves the loading problem; once the ladder is on the roof, secure it with locking ladder clamps. Tying it with rope or cord is not sufficient for traffic safety.
What happens if I get the wrong roller code?
Most often, the rear door(s) cannot open fully; if the roller does not fit correctly, the ladder may also scrape and catch during loading. For this reason, have the code confirmed in advance using the make, model, and year.
Are roof bars required to carry a ladder?
Yes. Both the loading roller and ladder clamps attach to the crossbars, not directly to the vehicle roof. If your vehicle does not have roof bars, install them first.
