Raised vs. flush roof rails: which roof bars fit my vehicle?

Short answer: The difference is whether the rail touches the vehicle roof. With raised roof rails, there is a gap between the rail and the roof large enough to fit your fingers; the roof bar bracket passes through this gap and grips the rail from underneath. With flush (integrated) roof rails, the rail sits directly on the roof with no gap underneath; the connection is made through the rail's own channel or the vehicle's factory mounting points. This difference determines which roof bars to choose: for raised roof rails the TRX1, for flush roof rails TRX2.

Note: the rail described on this page is the load-bearing bar running lengthwise along the vehicle roof — it is not interior crown molding or wall trim.

Which type do you have? The 5-Second Test

Stand next to the vehicle and try to slide your hand under the roof rail:

• If your hand fits underneath → raised roof rails. The rail is raised above the roof, with light visible underneath. These are commonly found on station wagons, SUVs, and off-road vehicles.
• If your hand does not fit underneath → flush roof rails. The rail sits on the roof and the two look like a single piece. They have become common on newer vehicles for aerodynamic reasons.
• If there are no bars on the roof → bare roof. This is a third configuration; there is no surface for the roof bars to attach to.

This test determines which series to choose. Judging by sight can be misleading: some flush rails look raised from a distance, while the gap under some raised rails is narrow. Check by hand.

Why do the two roof rail types use different mounting methods?

With raised roof rails, the roof bar bracket clamps the rail from above and below, like a vise. The force is applied directly to the rail itself; the rail is already attached to the vehicle body as a load-bearing part. The TRX1 series is designed for this geometry and requires a gap so the bracket can grip the rail.

With flush roof rails, there is no gap to grip. On these vehicles, the connection is made either with a fitting that slides along the channel on the rail or through the factory mounting points on the roof. The TRX2 series is designed for this type of connection.

For this reason, the two series are not interchangeable. Trying to fit TRX2 to raised rails or forcing TRX1 onto flush rails can prevent the connection from seating properly and cause it to loosen from road vibration.

Which one is better?

Neither is “better” — it depends on the type of roof your vehicle has. This is a compatibility question, not a matter of preference. Still, there are two practical differences:

• Wind Noise: Because flush rails sit against the roof, they disrupt airflow less; air can pass under raised rails and create a humming noise at certain speeds. Once roof bars are installed, the difference largely comes from the roof bar profile itself.
• Flexibility in Mounting Position: With raised rails, you can slide the bracket to any position along the rail. With flush rails, the mounting points are generally more limited.

How do you confirm compatibility?

The hand test tells you which series you need, but final confirmation should be based on the make, model, and year: the same model may have different rail types in different trim packages, and some years may have no rails at all. Product-page compatibility is listed by make, model, and year range; selecting your vehicle shows the suitable series. If unsure, send a side-on photo of the roof — the gap under the rail will be visible.

Frequently Asked Questions

What is the difference between raised and flush roof rails?

Raised rails have a gap between the rail and the vehicle roof large enough to fit your hand, and the roof bar bracket passes through it to grip the rail from underneath. Flush (integrated) rails sit against the roof with no gap underneath, and the connection is made through the rail's own channel or the vehicle's factory mounting points. The difference is in the mounting method, not appearance.

How can I tell which type of roof rail my vehicle has?

Try sliding your hand under the roof rail. If it fits, you have raised rails; if it does not, you have flush rails. Do not judge by sight: some flush rails look raised from a distance. If there are no bars on the roof, your vehicle has no roof rails.

Which roof bars fit raised rails?

The TRX1 series. Its brackets are designed to pass through the gap between the rail and roof and grip the rail from underneath. On a vehicle with flush rails, these brackets have no gap to grip.

Which roof bars fit flush rails?

The TRX2 series. The connection is made through the rail's own channel or the factory mounting points on the vehicle roof; it does not need a gap to grip.

Are TRX1 and TRX2 interchangeable?

No. The two series are designed for different mounting geometries. Forcing the wrong series can prevent the connection from seating properly and cause it to loosen over time from road vibration, directly affecting carrying safety.

Does the same model have the same type of roof rail every year?

No. The same model may have different rail types in different trim packages, and some years may have no rails at all. For this reason, after checking the gap by hand, confirm compatibility by make, model, and year range.

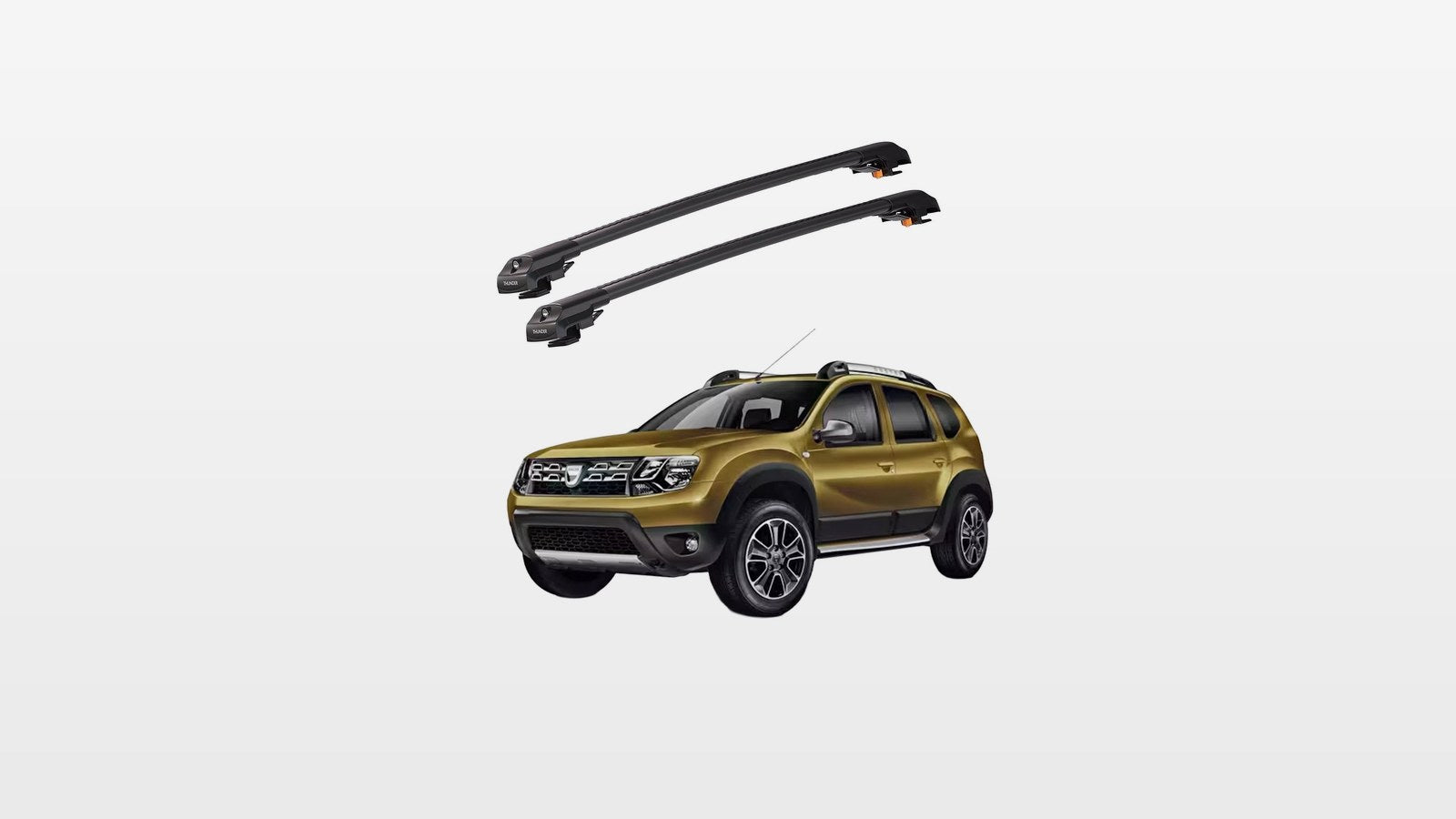

Related product: DACIA DUSTER 2014-2017 TRX1 Thunder Carrier Locking Roof Bars
